56% Steel Grate Panel
• Fitting for various of access floor panels.
• 600mm or 24 inches square
• Panel weight: 12kg/pc bare
• Panel height: 35mm
• The stringer width requirement: 21mm wide for 60cm and 24 inches system
• Bottom with square pipe support
• Non-combustible material
• 35% open area
• Available with coatings
• Top surface adjustable damper available
• Removable with portable lifting device
• Load performance-see table below

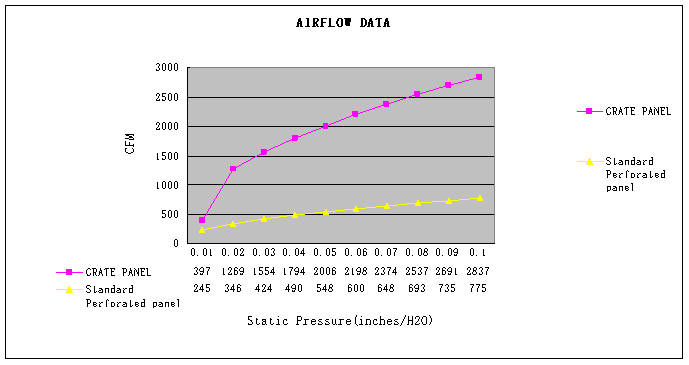

• Airflow data-see chart below
UPIN was founded in year 2003. The company is located in Changzhou city, Jiangsu Province, which is 150kms from Shanghai and enjoys convenience. Upin covers a total area of 50,000sqm with more than 300 employees. Benefit from its professional manufacturing and quality management in according to ISO9001:2000, UPIN develop to a leading raised access floor manufacture and committed to providing full series of raised floors globally.
4)The protection from zinc whisker---Provide more solutions to protect the system from zinc whiskers. Please contact UpinFLOOR sales for more details.
5)upinFLOOR has its own facility to make HPL to offer more colors and types. More than that, there are almost unlimited factory laminated finish options.
6) Underfloor air system---Design and supply the integrated underfloor air system products. Combine the understructure, bridging beam structure and air plunum to achieve flexible underfloor air access and highest air tight performance.
